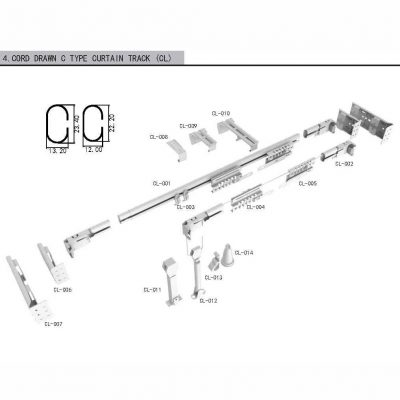

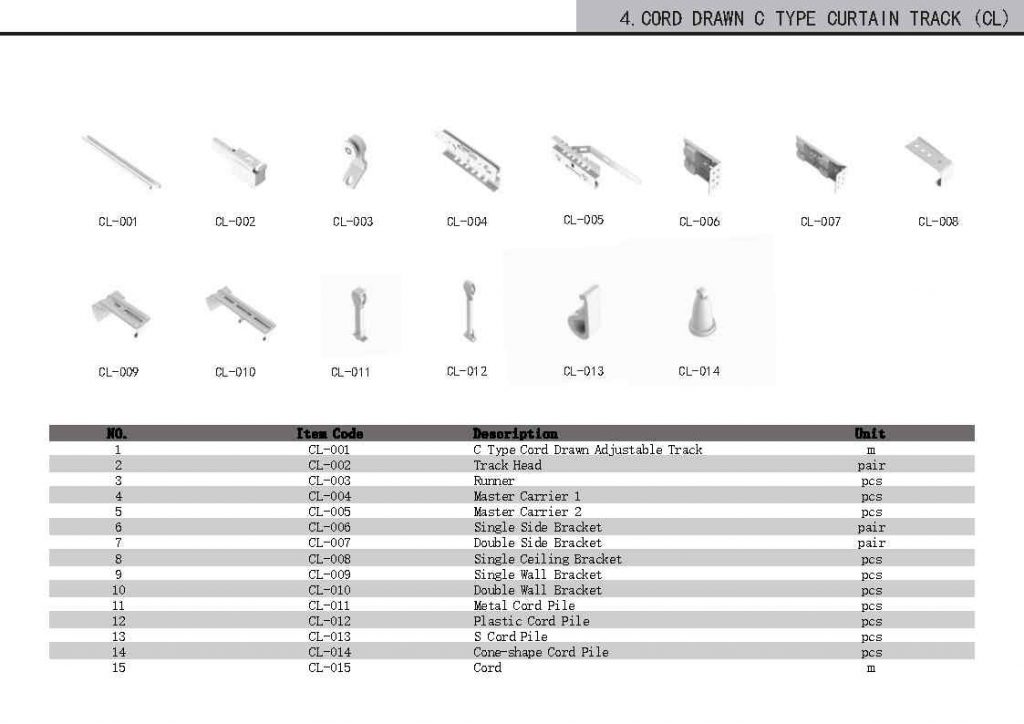

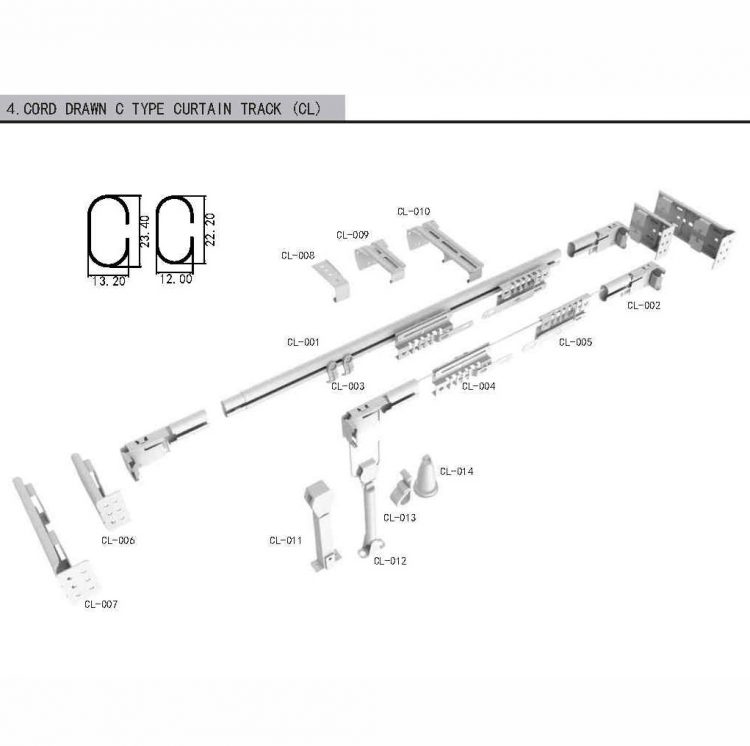

| C-section Cord Drawn | ||||||||||
| Size | QTY/CTN | Runner | End Bracket | Centre Bracket | TIP | Rope | Master carrier | Screw | MEAS | G.W / N .W |
| CM | Single /Double | single | M | 2 metal | Single /Double | CM | KGS | |||
| 71-125 | 12/6 | 10 | 2 | 2 | 7 | 1 pair | 8/10 | 71×27.5×11 | 8.5/8 | |
| 122-225 | 12/6 | 20 | 2 | 1 | 2 | 9 | 2 pair | 11/13 | 122×27.5×11 | 11.5/10.5 |
| 168-305 | 12/6 | 30 | 2 | 2 | 2 | 11 | 3 pair | 14/16 | 168×27.5×11 | 14.5/13.5 |
| 212-402 | 12/6 | 40 | 2 | 2 | 2 | 13 | 4 pair | 14/16 | 212×27.5×11 | 18.5/17.5 |
| 240-460 | 12/6 | 50 | 2 | 3 | 2 | 15 | 5 pair | 17/19 | 240×27.5×11 | 23.5/22 |
| 285-550 | 12/6 | 60 | 2 | 4 | 2 | 17 | 6 pair | 20/22 | 285×27.5×11 | 26/25 |
- Description:
- Super duty
- Especially designed for motels, hotels, dormitories, and commercial buildings with rolling carriers to provide maximum sturdiness for heavier weight drapery • Will accommodate three pleating systems—roll, stack, and pinch
- Advantages:
- Carries more weight without losing smooth efficiency
- Use for ceiling or wall mount
- Comes in custom–measured assembled sets
- Maximum fabric weight
-
- 1 3⁄4 pound per foot
-
- Maximum track lengths
-
- 30 pound and 16 feet–1 way
- 60 pound and 32 feet–2 way
-
- Pleat system:
-
- Pinch pleat
- Roll pleat
- Stack pleat
-
