Choosing a motor by fabric weight alone is one of the most common — and most costly — mistakes in motorized window covering projects. It’s also one of the most common causes of “warranty claims” that aren’t actually motor defects at all.
This guide breaks down what actually goes into a proper load calculation, so you can spec correctly the first time, avoid premature failures, and have better technical conversations with your own customers and installers.

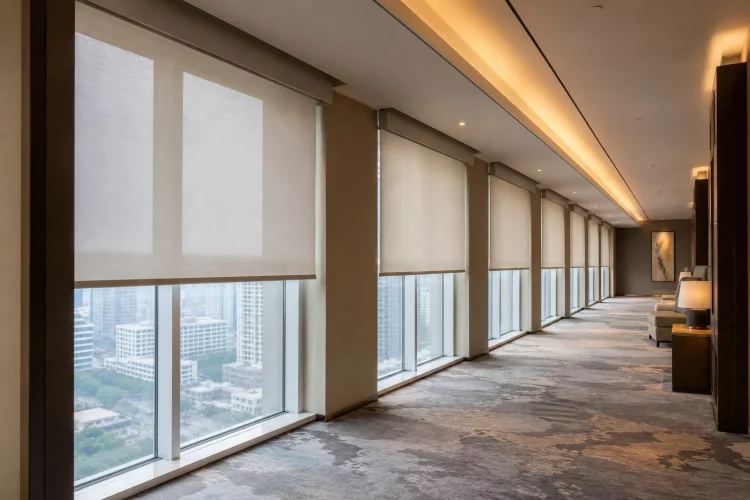

Motorized Blinds
Why This Matters
A motor’s rated torque tells you the maximum load it can move under ideal conditions. But “ideal conditions” rarely exist on a real installation. The gap between the spec sheet number and real-world performance is exactly where premature wear, overheating, and early failures come from.
The good news: this gap is predictable and calculable. It just requires looking at four factors instead of one.
The Four Factors in a Real Load Calculation
1. Fabric Weight (the starting point, not the whole picture)
This is the number most buyers already calculate:
Fabric weight (kg) = fabric density (g/m²) × width (m) × drop (m) ÷ 1000
Example: A blackout fabric at 400 g/m², 3m wide × 2.5m drop: 0.4 kg/m² × 3m × 2.5m = 3 kg
Straightforward — but this is only the load hanging on the system. It’s not the load the motor actually has to move.
2. Hardware Weight (the part most buyers skip)
The motor isn’t just lifting or drawing fabric — it’s also turning or moving the hardware attached to it, every single cycle, for years.
For roller systems: the roller tube itself (aluminum tube + end caps + bottom bar + motor housing) adds constant rotating weight. Wider spans need thicker-wall tubes, which weigh more — this is why the same motor can be correctly specified for a 2m window and undersized for a 4m window of identical fabric.
For track-and-carrier systems (curtain tracks, Roman blinds, Shangri-La): each carrier or glider adds incremental weight. On a wide track with many carriers, this adds up — and more importantly, it adds friction (see below).
Rule of thumb: for aluminum roller tubes, add roughly 0.3–0.8 kg per meter of tube length depending on diameter and wall thickness. For track carriers, check your hardware spec sheet for per-carrier weight and multiply by carrier count.
3. Friction Resistance (the invisible load)
This is the factor that causes the most confusion, because it doesn’t show up if you only weigh the fabric and hardware — but it’s often the biggest single contributor to real-world load.
Friction comes from:
- Track material and finish — nylon-lined tracks run smoother than raw aluminum
- Curves and bends — bay windows or curved tracks dramatically increase resistance at the curve point
- Bracket alignment — a track that’s slightly misaligned during installation creates ongoing drag the motor has to fight every cycle
- Maintenance condition — dust, lack of lubrication, and wear over time increase friction gradually, meaning a motor that was adequate on day one can become inadequate after a year of use
Practical guideline: add 15–20% of total weight (fabric + hardware) as a friction allowance for straight roller systems. For curved tracks or multi-carrier Roman/Shangri-La systems, increase this to 25–35%.
4. Duty Cycle — How Often, Not Just How Heavy
A motor rated for a given load in a residential setting (2–4 cycles per day) is under very different stress than the same motor in a hotel corridor or commercial space cycling 15–20+ times per day.
Frequent cycling causes fatigue wear — gear and bearing wear that accumulates over repeated cycles, independent of the load itself. This is why two identical motors, same load, can have very different lifespans depending on where they’re installed.
Practical guideline: for commercial or high-cycle applications, treat the “safe” load ceiling as 15–20% lower than you would for residential use, even if the rated torque is technically sufficient.
Putting It Together: The Full Calculation
Total effective load = Fabric weight + Hardware weight + Friction allowance
Then apply a safety margin of 20–30% — never spec a motor at its rated maximum. This margin absorbs installation variance, aging hardware, and duty cycle stress over the product’s lifespan.

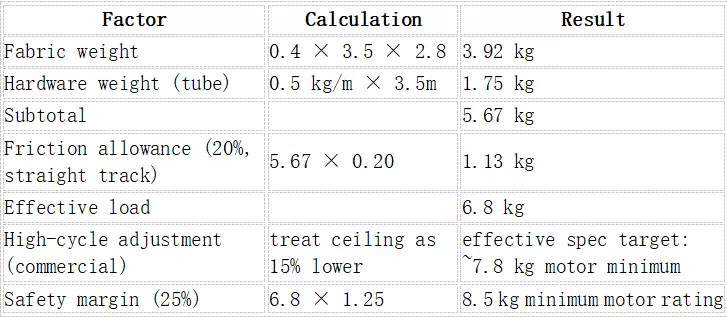

Worked Example
A hotel corridor installation: blackout roller blind, 400 g/m² fabric, 3.5m wide × 2.8m drop, aluminum roller tube, straight track, cycling ~15 times/day.
A motor rated at exactly 7 kg would look “close enough” on paper — but based on hardware, friction, and cycle frequency, it’s actually undersized for this application. This is precisely the kind of gap that shows up as a warranty claim eight months into a hotel installation, not a manufacturing defect.
From Load to Torque: Matching Your Calculation to a Motor Spec
Motor spec sheets don’t rate motors in kilograms — they rate them in torque (N·m, or sometimes kg·cm). Torque describes rotational force, not straight-line weight, so converting your effective load into the right torque number is the step that actually determines which motor SKU you can use.
Torque (N·m) = Load force (N) × Radius (m)
Where load force = effective load (kg) × 9.8 (gravity constant), and radius is the radius of the roller tube (not the diameter — this trips people up).
Worked Example
Using the 8.5 kg effective load from the hotel example above, on a 50mm diameter roller tube (radius = 0.025m):
- Load force: 8.5 kg × 9.8 = 83.3 N
- Torque needed: 83.3 N × 0.025m = 2.08 N·m
So the motor needs to be rated at at least 2.08 N·m continuous torque for this load.

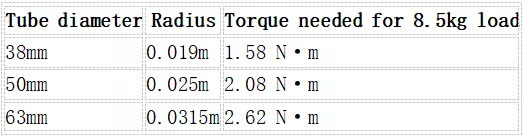

Tube Diameter Changes the Torque Requirement — Even With Identical Load
This is the counterintuitive part: the same fabric weight needs more torque on a larger-diameter tube, because the radius (lever arm) is longer.
This is why larger/heavier-duty tubes (used for wider spans, as discussed above) aren’t just about structural strength — they mechanically require more torque for the exact same fabric load. It’s a compounding effect: wider window → heavier tube needed → longer radius → more torque required, on top of the extra fabric weight itself.

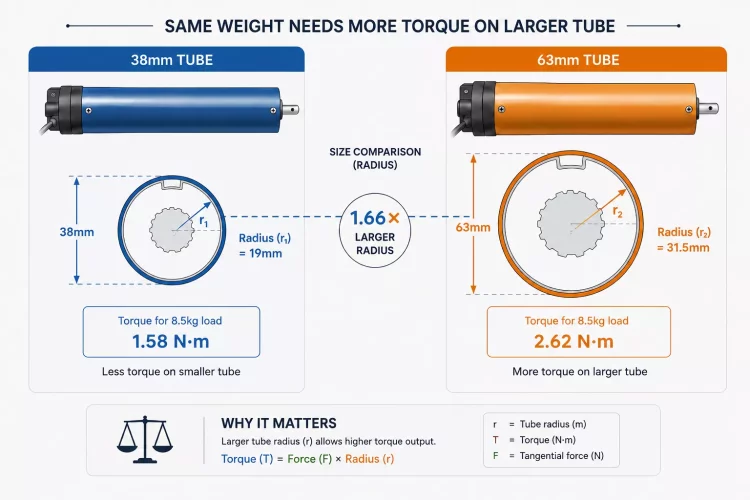

same load - different diameter tube
Rated Torque vs. Stall Torque — Read the Spec Sheet Carefully
Two numbers often appear on motor datasheets, and mixing them up is a common sourcing mistake:
- Rated (continuous) torque — what the motor can sustain reliably over its operating life. This is the number to match against your calculated load.
- Stall/peak torque — the maximum force momentarily, often significantly higher. Some suppliers lead with this number because it looks more impressive — but specifying against stall torque instead of rated torque is a fast path to premature failure.
Practical rule: always ask suppliers explicitly which number is on the spec sheet, and size against rated/continuous torque with your safety margin, not stall torque.
Using Torque to Check a Motor Before You Source It
The calculation above works in one direction: load → required torque → find a motor that meets it. But there’s a second, equally important direction most buyers skip: taking a motor’s advertised specs and checking whether they actually hold up for your specific setup.
Reverse formula:
Max load (kg) = Rated torque (N·m) ÷ radius (m) ÷ 9.8
Why This Matters
Suppliers often list a single “max load” figure on a datasheet — e.g., “supports up to 10kg.” That number is usually calculated against their reference tube diameter, which may not match the tube you’re actually using. A wider window with a heavier-duty tube changes the real capacity of the same motor.
Example: A motor rated at 3 N·m, advertised as “10kg max load” — likely calculated against a 30mm tube:
3 N·m ÷ 0.015m ÷ 9.8 = 20.4 kg (too generous — suggests the figure was rounded from stall torque, not rated torque)
The same motor on a 50mm tube:
3 N·m ÷ 0.025m ÷ 9.8 = 12.2 kg
On a 63mm heavy-duty tube:
3 N·m ÷ 0.0315m ÷ 9.8 = 9.7 kg
The motor itself didn’t change — but its real capacity for your project moved by 50%+ depending on tube diameter. This is why a “max load” figure on a datasheet is close to meaningless without knowing what tube diameter it was calculated against.
The Sourcing Checklist
When evaluating a motor against your project, ask the supplier for three numbers, then run the math yourself rather than trusting the headline “max load” claim:
- Rated (continuous) torque in N·m — not stall torque
- Reference tube diameter used for any advertised “max load” figure
- Duty cycle rating — how it’s tested (cycles/day, continuous vs. intermittent)
Then compare:
- Your effective load (fabric + hardware + friction + safety margin) → required torque
- Their rated torque → actual max load on your tube diameter
If a supplier can’t separate rated torque from stall torque, or can’t tell you the reference tube diameter behind their max load claim, that’s a signal the spec sheet is marketing copy rather than engineering data.
Quick Reference: Common Mistakes
- Specifying by fabric weight only — ignores 20–40% of the real load in most installations
- Using residential load assumptions for commercial projects — duty cycle matters as much as raw weight
- Ignoring curve sections — bay windows and curved tracks can add significant friction at the curve point alone
- Treating rated torque as the safe operating point — it’s the ceiling, not the target
- Not accounting for hardware weight on wide spans — the same fabric on a wider track needs a heavier tube, which changes the math
- Trusting a datasheet’s “max load” figure without checking the reference tube diameter it was calculated against — the same motor’s real capacity can shift by 50%+ depending on your tube size
Why This Matters for Sourcing Decisions
Two motors can carry identical specs on a datasheet and perform completely differently once hardware weight, friction, and duty cycle are factored in. Suppliers who only publish fabric load capacity are giving you half the picture.
When evaluating a motor supplier, ask:
- Do their load ratings account for hardware weight, or fabric only?
- Do they provide separate guidance for residential vs. commercial duty cycles?
- Can they walk you through the friction assumptions behind their ratings?
- Can they give you rated (continuous) torque separately from stall torque, and the reference tube diameter behind any “max load” claim?
A five-minute conversation at the sourcing stage is a lot cheaper than a warranty claim six months into a project.
